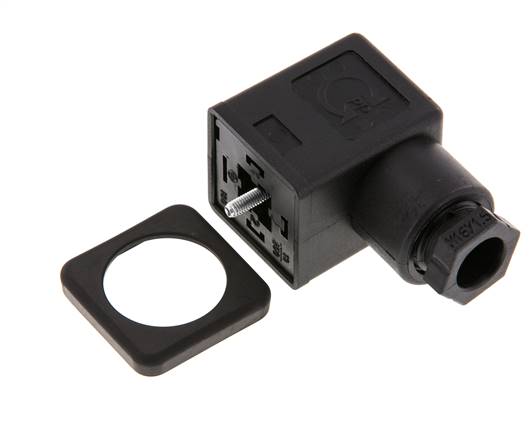

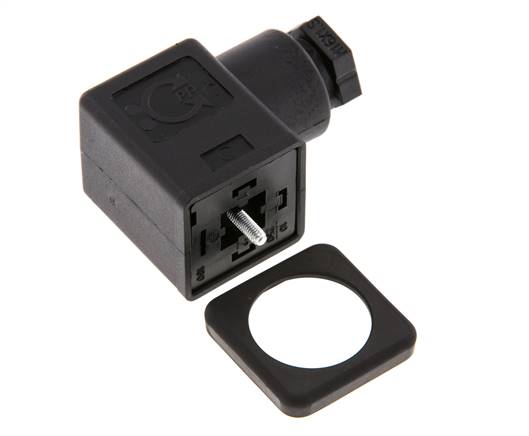

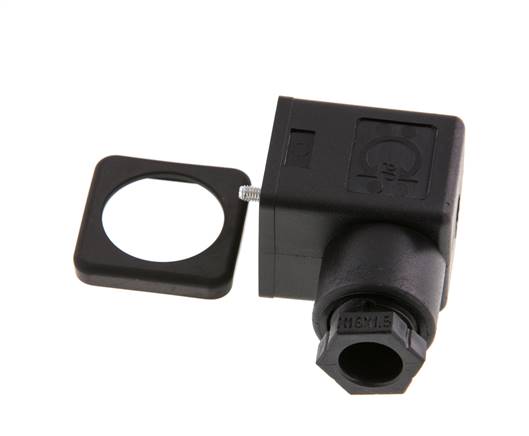

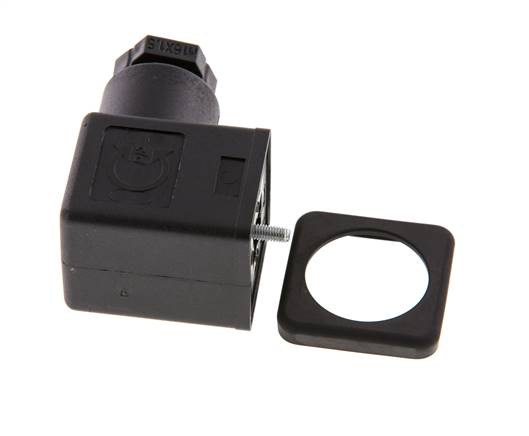

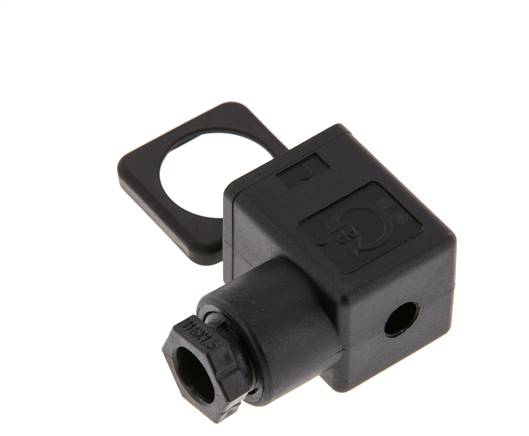

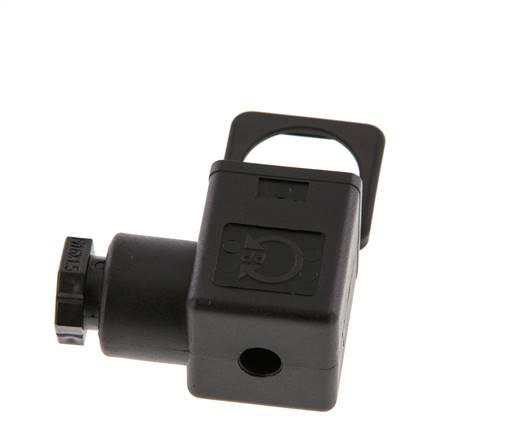

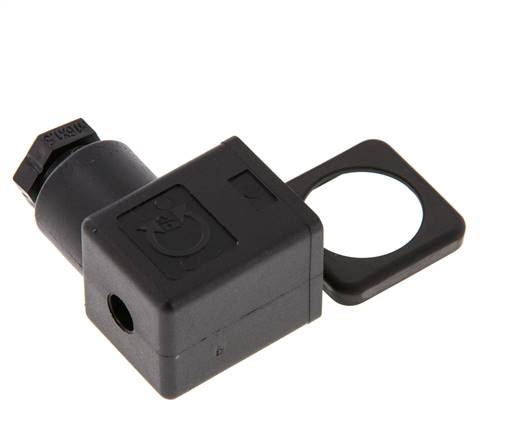

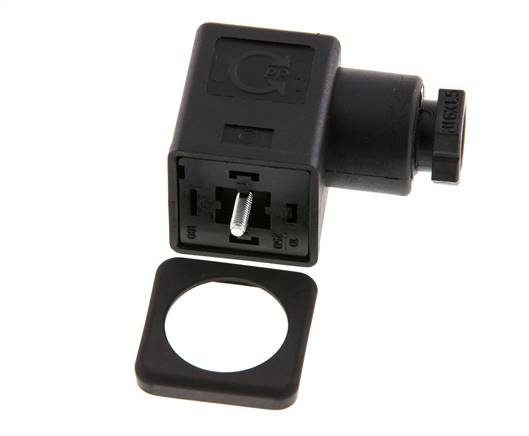

DIN 43650 Form A Solenoid Valve Connector Size 3 M16x1.5 35mm Black

Solenoid valve connector size 3 to DIN 43650 / EN 175301-803 Form A, with 2 contacts plus earth (PE). M16x1.5 cable gland, 35 mm high, black housing. The connector plugs onto the coil of the solenoid valve, and the central fixing screw holds it in place. Max. 250 V AC / 300 V DC and 10 A. IP65 with the gasket fitted, -40 to 125 °C. Supplied with the fixing screw and a profile gasket. A profile gasket adds about 2 mm to the outer dimensions of the connector; check the space at the coil.

Pros:

• Size 3, DIN 43650 / EN 175301-803 Form A
• 2 contacts plus earth (PE), M16x1.5 cable gland
• Max. 250 V AC / 300 V DC, 10 A
• IP65, -40 to 125 °C
• Fixing screw and profile gasket included

Cons:

• No LED or protective circuit; for status display, choose a connector with LED

Series:

Solenoid valve connectors to DIN 43650 / EN 175301-803 and industry standard, for coils with 2 contacts plus earth (PE) or 3 contacts plus earth. Size 0 (industry standard Form C, PG 7), size 1 (industry standard Form B, M16x1.5), and size 3 (DIN Form A, M16x1.5 or PG 9). Black or grey, also with a bridge rectifier. Max. 250 V AC / 300 V DC, 6 A (size 3: 10 A). IP65, -40 to 125 °C. Screw and gasket included: flat gasket, size 3 with profile gasket.
