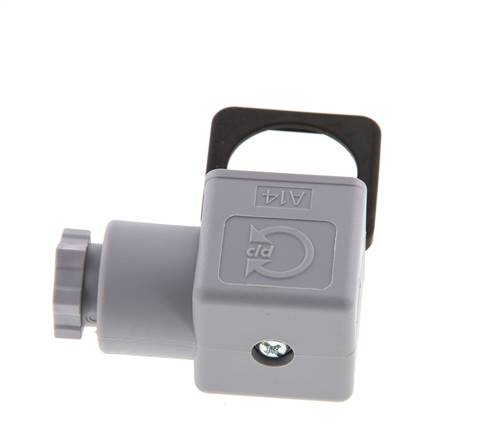

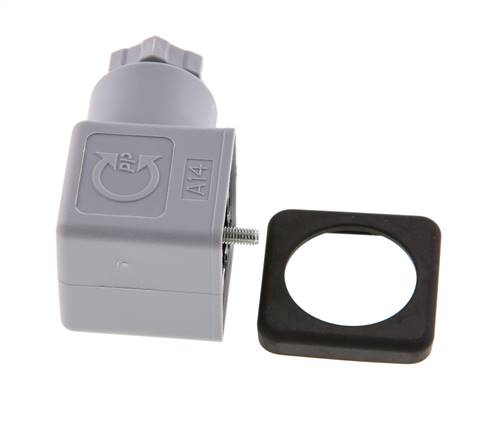

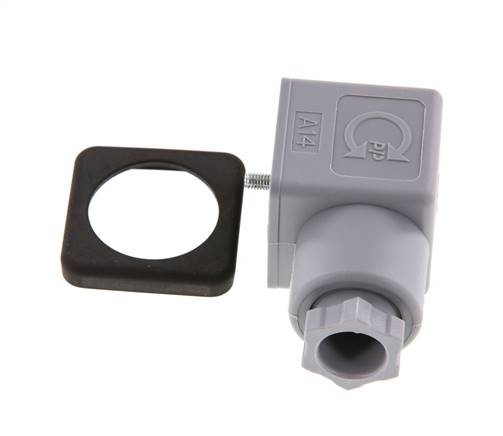

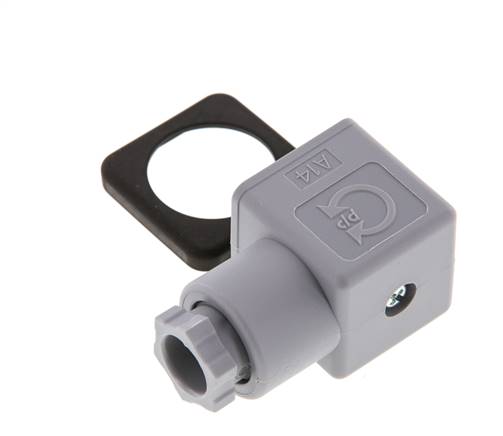

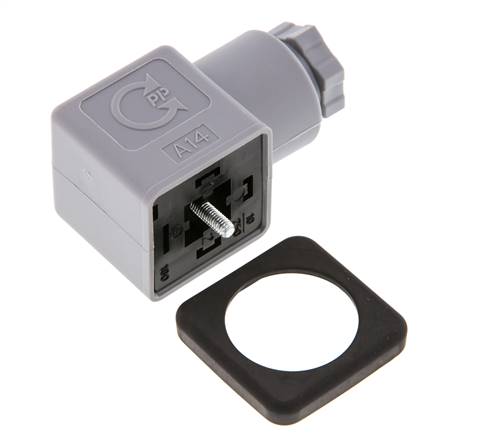

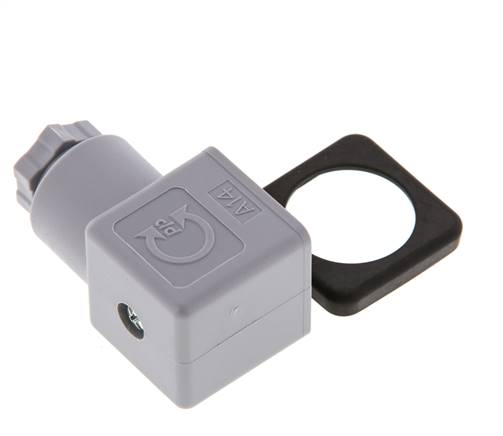

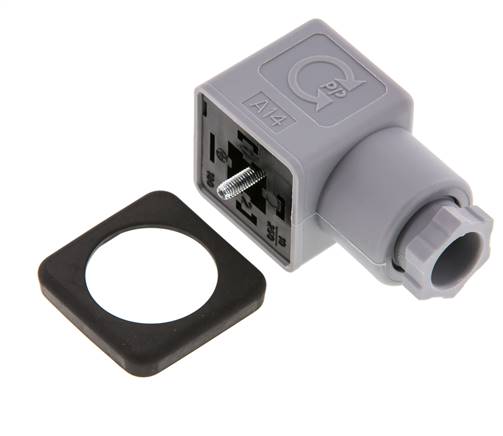

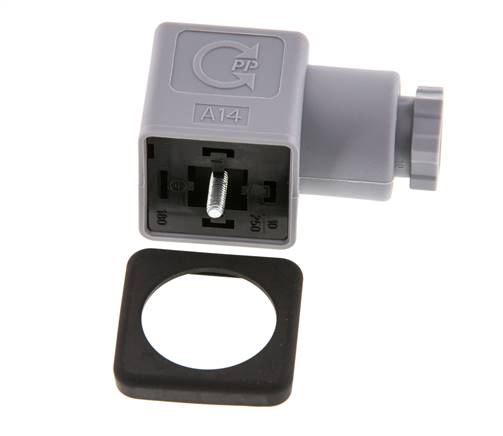

DIN 43650 Form A Solenoid Valve Connector Size 3 PG9 28mm Grey

Solenoid valve connector size 3 to DIN 43650 / EN 175301-803 Form A, with 2 contacts plus earth (PE). PG 9 cable gland, 28 mm high, grey housing. The connector plugs onto the coil of the solenoid valve, and the central fixing screw holds it in place. Max. 250 V AC / 300 V DC and 10 A. IP65 with the gasket fitted, -40 to 125 °C. Supplied with the fixing screw and a profile gasket. A profile gasket adds about 2 mm to the outer dimensions of the connector; check the space at the coil.

Pros:

• Size 3, DIN 43650 / EN 175301-803 Form A
• 2 contacts plus earth (PE), PG 9 cable gland
• Max. 250 V AC / 300 V DC, 10 A
• IP65, -40 to 125 °C
• Fixing screw and profile gasket included

Cons:

• No LED or protective circuit; for status display, choose a connector with LED

Series:

Solenoid valve connectors to DIN 43650 / EN 175301-803 and industry standard, for coils with 2 contacts plus earth (PE) or 3 contacts plus earth. Size 0 (industry standard Form C, PG 7), size 1 (industry standard Form B, M16x1.5), and size 3 (DIN Form A, M16x1.5 or PG 9). Black or grey, also with a bridge rectifier. Max. 250 V AC / 300 V DC, 6 A (size 3: 10 A). IP65, -40 to 125 °C. Screw and gasket included: flat gasket, size 3 with profile gasket.
