38S Zink plated Steel T-Shape Tee Cutting Fitting with Swivel 315 bar Adjustable ISO 8434-1
Notice: This product will be discontinued in the future

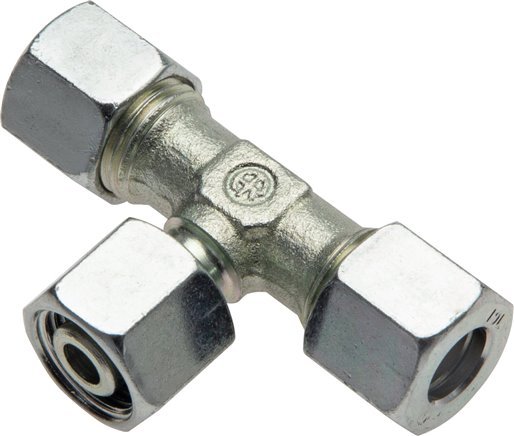

This zink plated steel Tee screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 38 mm cutting ring with a M52x2 union nut. Connection 2 is a 38 mm cutting ring with a M52x2 union nut. Connection 3 has a 38 mm swivel tube connection. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Notice: This product will be discontinued in the future
Description
This zink plated steel Tee screw connection is designed with cutting ring and swivel tube connection ports. It has an adjustable connection. Connection 1 is a 38 mm cutting ring with a M52x2 union nut. Connection 2 is a 38 mm cutting ring with a M52x2 union nut. Connection 3 has a 38 mm swivel tube connection. The maximum pressure is 315 bar (4568 psi). The fitting is suitable for temperatures from -40 to 120 °C (-40 to 248 °F). It is made in accordance with DIN EN ISO 8434-1 (DIN 2353).
Pros:
- Adheres to DIN EN ISO 8434-1 (DIN 2353)
- It has adjustable connection
- Suitable for hydraulic applications
