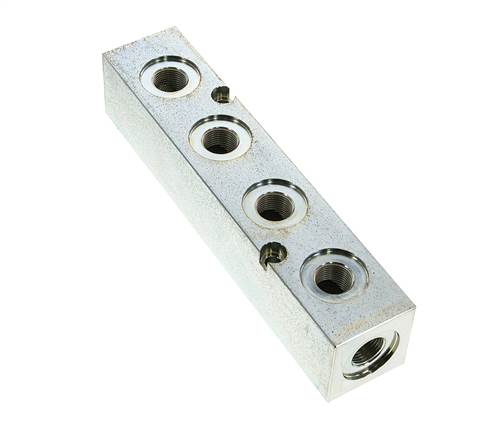

G3/8'' Hydraulic Distributor Block 2 Inlets 4 Outlets 315bar

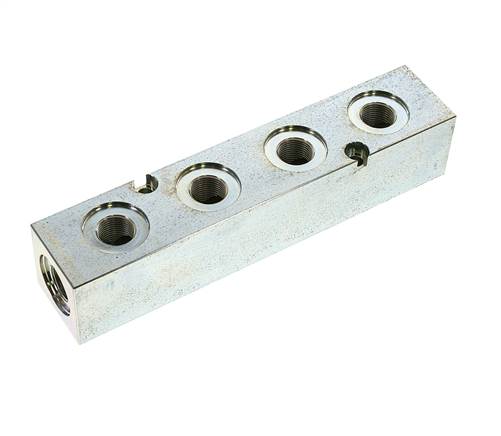

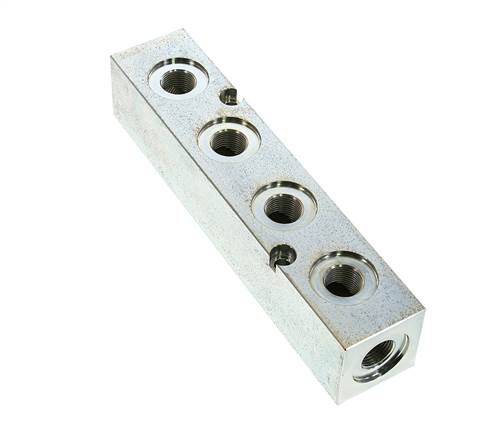

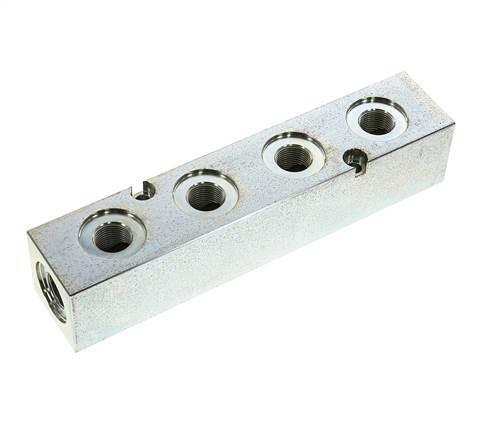

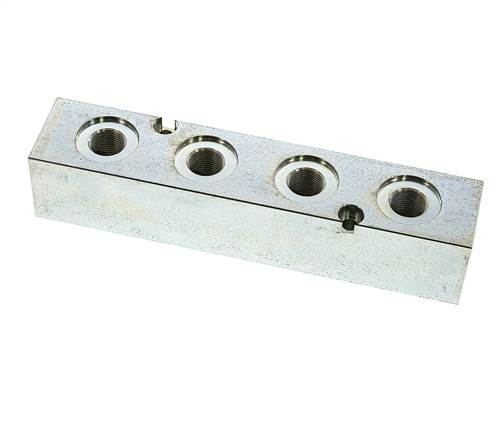

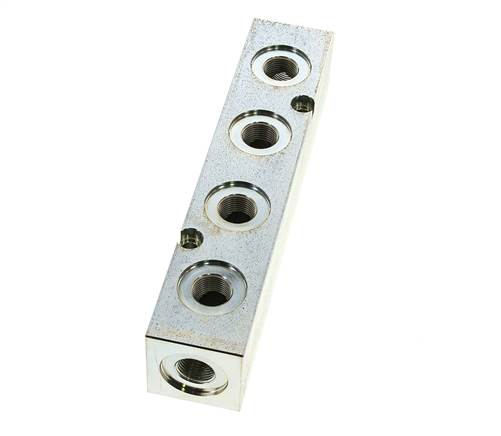

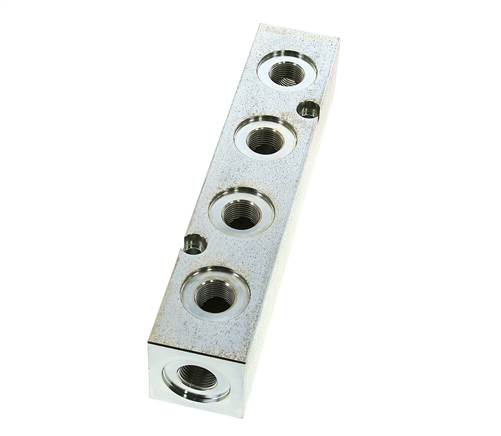

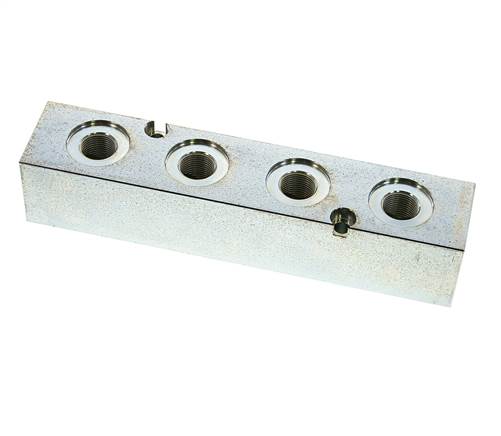

Hydraulic distributor block with 2 inlets and 4 outlets, all G3/8 BSPP, rated PN 315. It splits one pressure line into four. Galvanised steel, 195 x 40 x 40 mm, with two counterbored holes for M6 socket head screws.
- Regular price
- $196.68 USD
We sell only to registered businesses
Description
Use it to supply several consumers, gauges or pressure switches from one line. The inlets are on both end faces, so it can be fed from either side or passed through to a further block; close an unused port with a plug. The four outlets are 45 mm apart on one face. Mount it with two M6 socket head screws in the counterbores (DIN 74).
Pros:
- Four outlets from one line
- Inlets on both ends - feed from either side or pass through
- Counterbored holes for flush M6 screws
Cons:
- Plugs for unused ports not included
- All ports G3/8 - for other thread sizes, use adapters
Series:

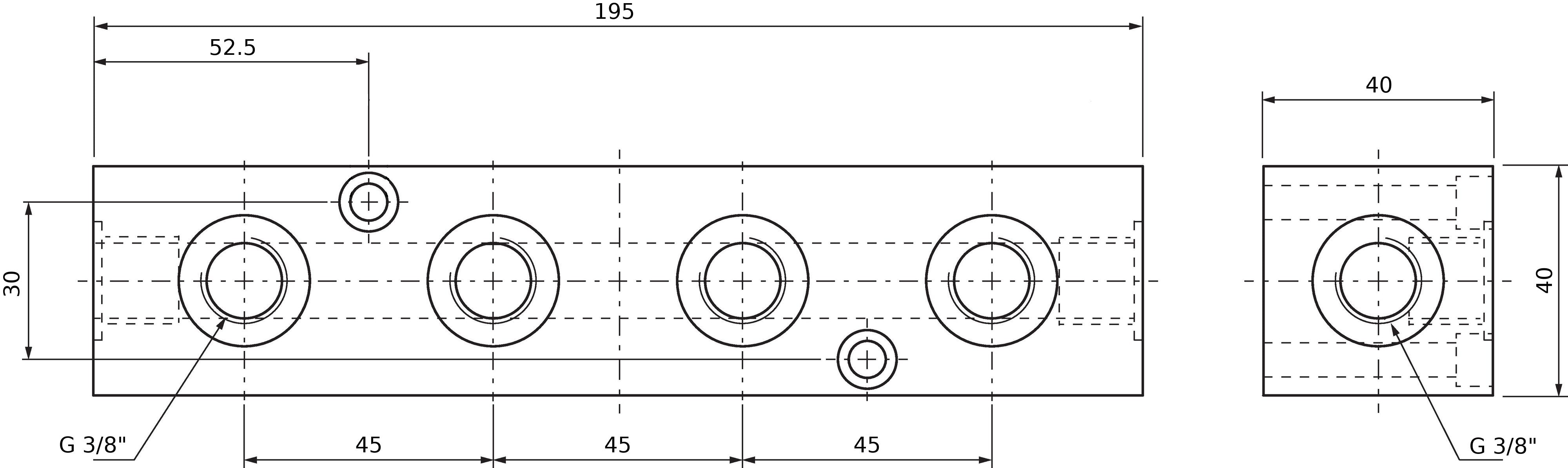

Hydraulic distributor blocks (Verteilerleisten) in galvanised steel for splitting or collecting hydraulic lines, rated PN 315. The FR 438 HD has two G3/8 inlets on the end faces and four G3/8 outlets on one face, 45 mm apart, and mounts with two M6 socket head screws in counterbores to DIN 74. Dimensions 195 x 40 x 40 mm.
