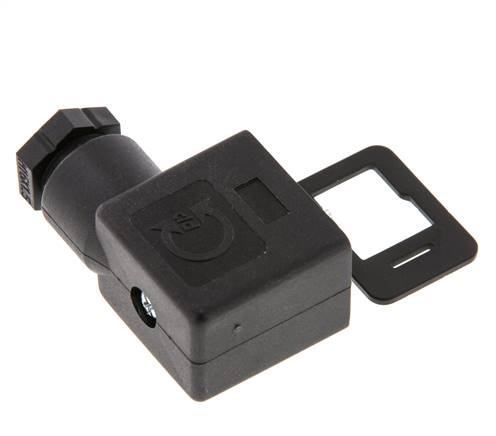

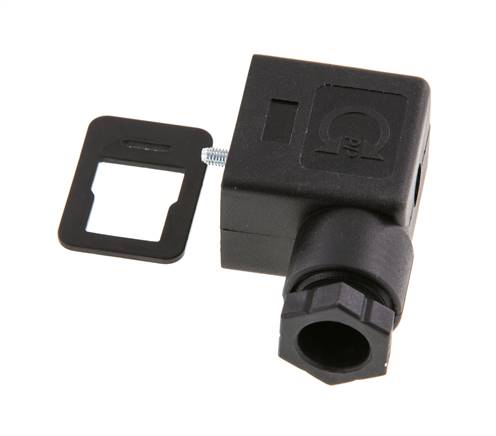

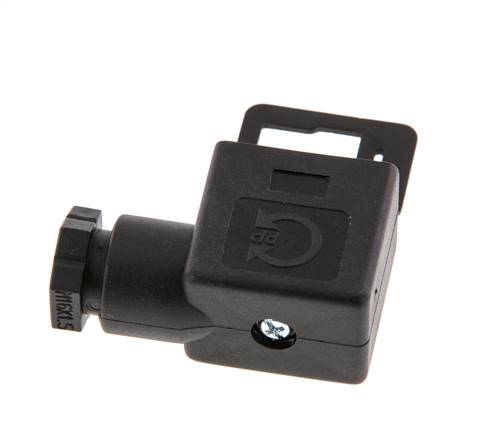

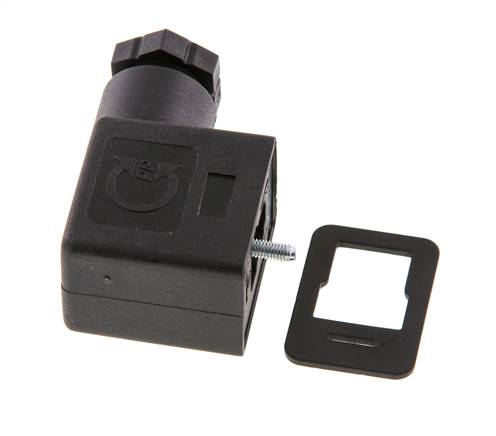

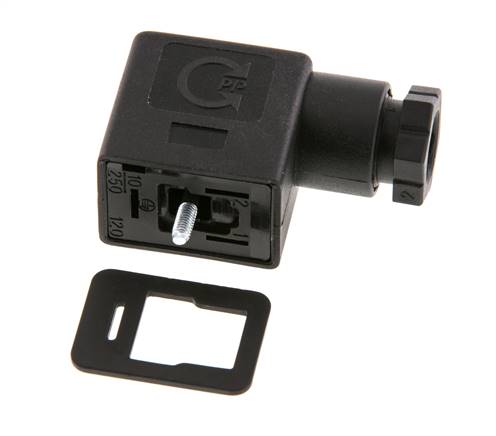

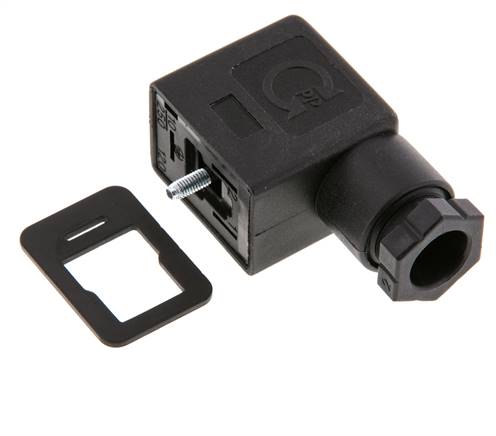

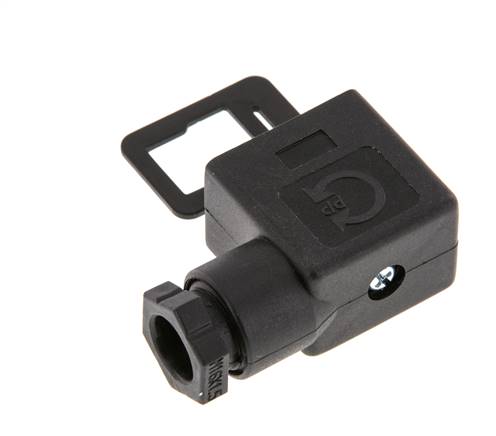

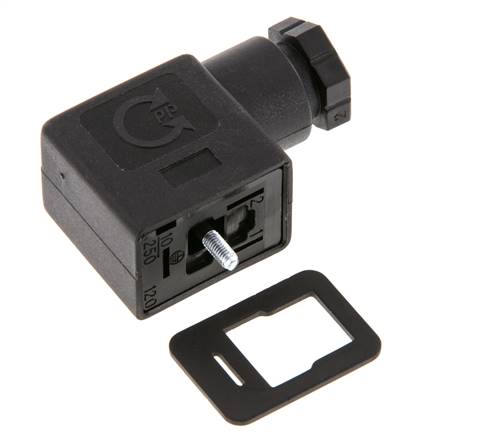

Industry Standard Form B Solenoid Valve Connector Size 1 M16x1.5 31mm Black [2 Pieces]

Solenoid valve connector size 1 to industry standard Form B, with 2 contacts plus earth (PE). M16x1.5 cable gland, 31 mm high, black housing. Most valve makers use industry-standard connectors for sizes 0 and 1. The industry standard Form B differs from the DIN Form B, so compare the pin pattern of the coil before purchase. Max. 250 V AC / 300 V DC and 6 A. IP65 with the gasket fitted, -40 to 125 °C. Supplied with the fixing screw and a flat gasket.

Contains 2 pieces

Pros:

• Size 1, industry standard Form B
• 2 contacts plus earth (PE), M16x1.5 cable gland
• Max. 250 V AC / 300 V DC, 6 A
• IP65, -40 to 125 °C
• Fixing screw and flat gasket included

Cons:

• No LED or protective circuit; for status display, choose a connector with LED
• Industry-standard pin pattern, not the DIN Form B

Series:

Solenoid valve connectors to DIN 43650 / EN 175301-803 and industry standard, for coils with 2 contacts plus earth (PE) or 3 contacts plus earth. Size 0 (industry standard Form C, PG 7), size 1 (industry standard Form B, M16x1.5), and size 3 (DIN Form A, M16x1.5 or PG 9). Black or grey, also with a bridge rectifier. Max. 250 V AC / 300 V DC, 6 A (size 3: 10 A). IP65, -40 to 125 °C. Screw and gasket included: flat gasket, size 3 with profile gasket.
