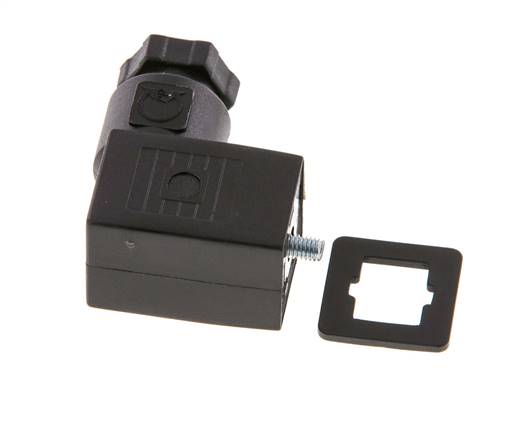

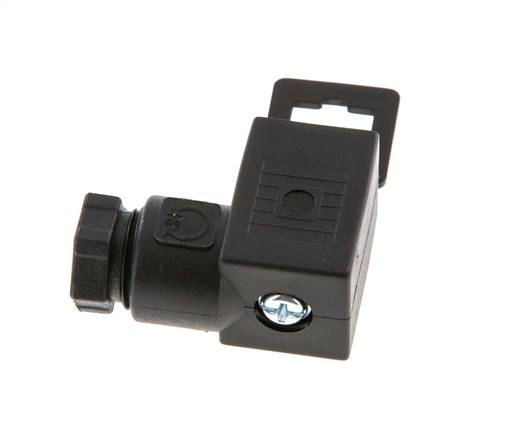

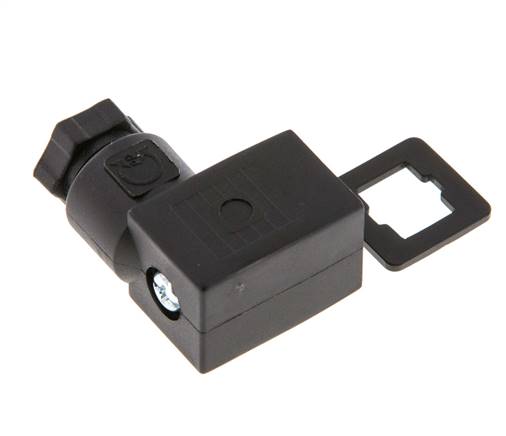

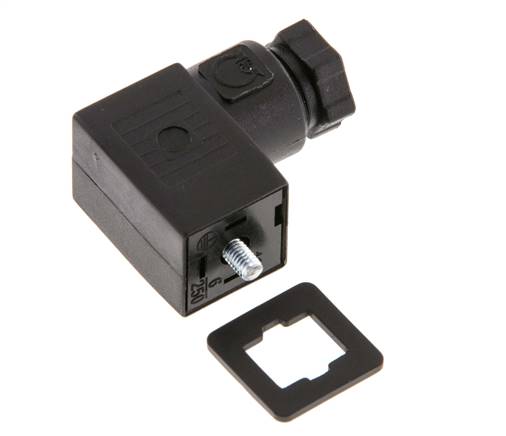

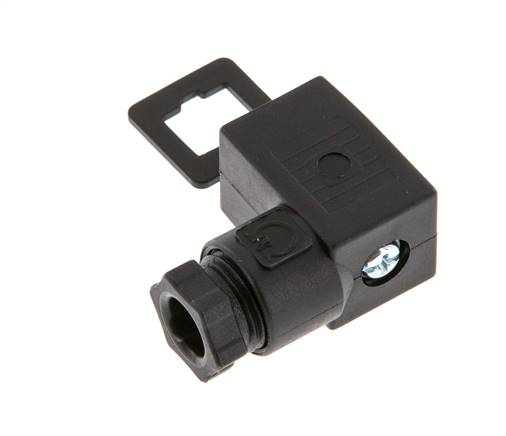

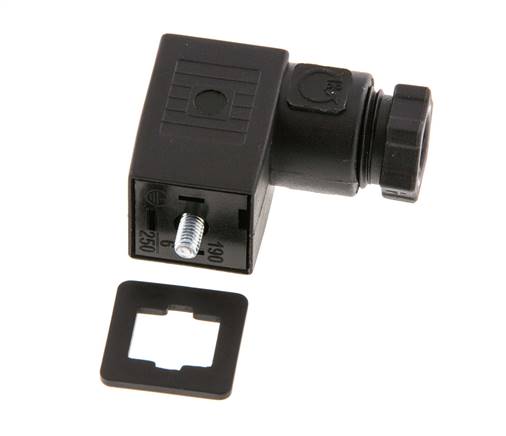

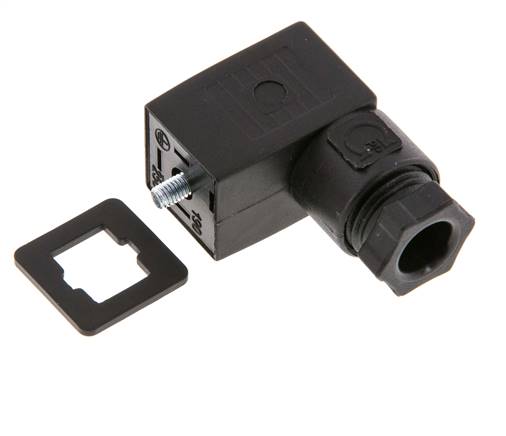

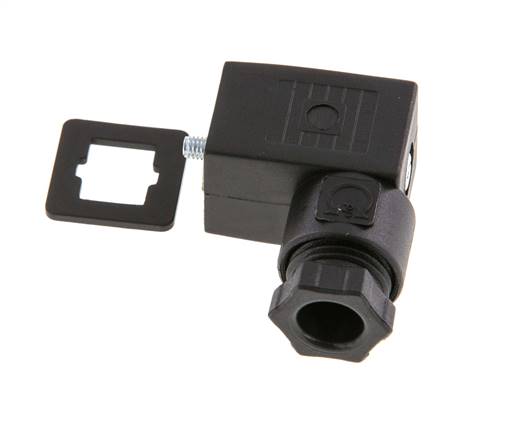

Industry Standard Form C Solenoid Valve Connector Size 0 PG7 27mm Black [2 Pieces]

Solenoid valve connector size 0 to industry standard Form C, with 2 contacts plus earth (PE). PG 7 cable gland, 27 mm high, black housing. Most valve makers use industry-standard connectors for sizes 0 and 1. The industry standard Form C differs from the DIN Form C, so compare the pin pattern of the coil before purchase. Max. 250 V AC / 300 V DC and 6 A. IP65 with the gasket fitted, -40 to 125 °C. Supplied with the fixing screw and a flat gasket.

Contains 2 pieces

Pros:

• Size 0, industry standard Form C
• 2 contacts plus earth (PE), PG 7 cable gland
• Max. 250 V AC / 300 V DC, 6 A
• IP65, -40 to 125 °C
• Fixing screw and flat gasket included

Cons:

• No LED or protective circuit; for status display, choose a connector with LED
• Industry-standard pin pattern, not the DIN Form C

Series:

Solenoid valve connectors to DIN 43650 / EN 175301-803 and industry standard, for coils with 2 contacts plus earth (PE) or 3 contacts plus earth. Size 0 (industry standard Form C, PG 7), size 1 (industry standard Form B, M16x1.5), and size 3 (DIN Form A, M16x1.5 or PG 9). Black or grey, also with a bridge rectifier. Max. 250 V AC / 300 V DC, 6 A (size 3: 10 A). IP65, -40 to 125 °C. Screw and gasket included: flat gasket, size 3 with profile gasket.
