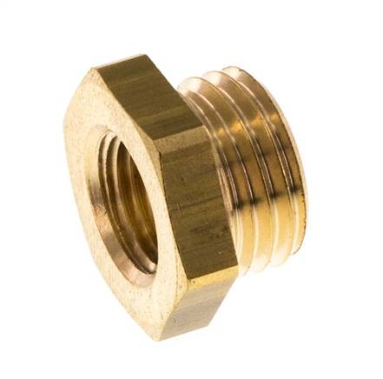

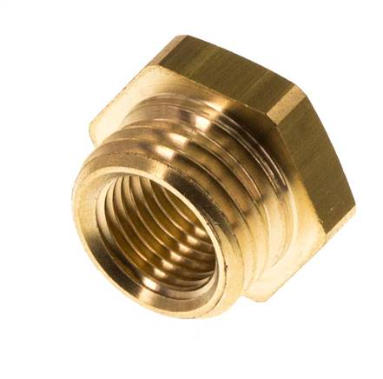

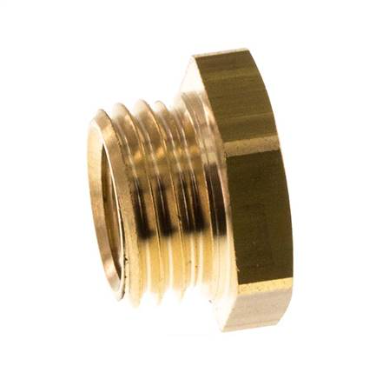

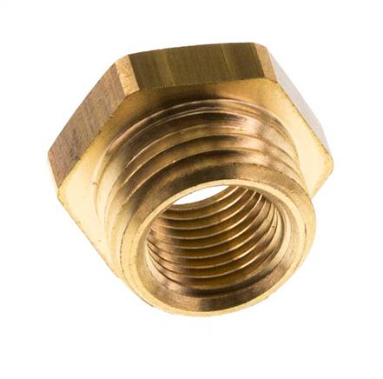

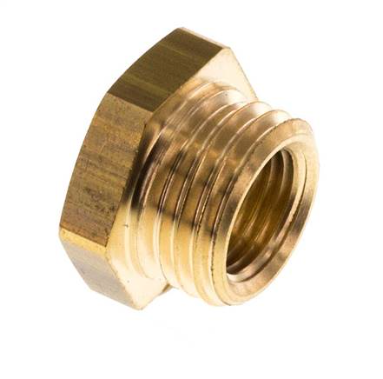

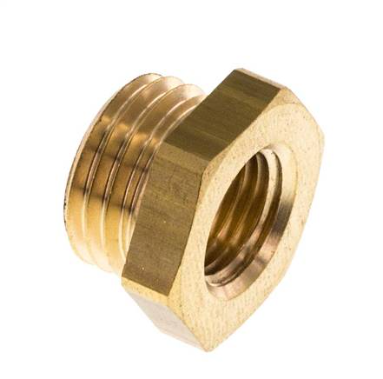

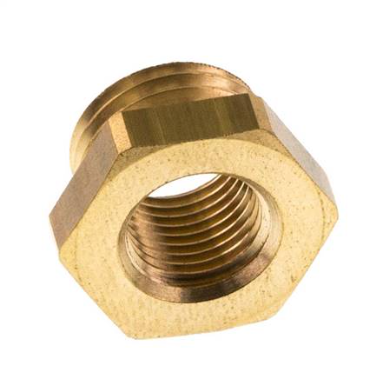

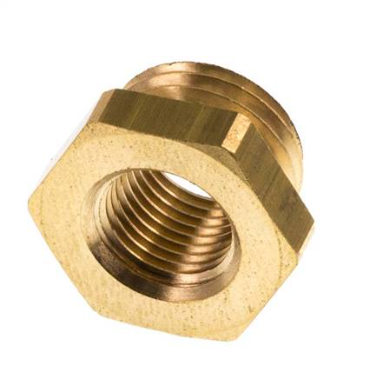

M14x1.5 Male x M10x1 Female Brass Reducing Nipple 16bar (232psi) [2 Pieces]

Male M14x1.5 and female M10x1 metric fine threads. Use this brass reducing nipple to connect an M10x1 fitting or line to a larger M14x1.5 port. The maximum pressure is 16 bar (232 psi) at 20 °C (68 °F).

Measure the diameter and pitch of the mating threads before ordering. These fine threads do not fit standard M14 coarse threads (2 mm pitch) or M10 coarse threads (1.5 mm pitch). The metric threads are parallel and do not seal on the thread flanks, so the connection needs a separate seal that is suitable for the medium.

The one-piece straight body has a 17 mm wrench width and a head length of 4 mm. Brass is suitable for neutral and non-corrosive media. For other media, check that brass is compatible with the medium before installation.

Contains 2 pieces

Pros:

• Male M14x1.5 and female M10x1 metric fine threads
• Max pressure 16 bar (232 psi) at 20 °C (68 °F)
• One-piece brass body, 17 mm wrench width

Cons:

• Brass body, for neutral and non-corrosive media only
• Parallel threads do not seal; a separate seal is needed

Series:

The S-6HBJ series are straight brass reducing nipples with a male metric fine thread and a smaller female metric fine thread. The range includes M14x1.5 to M10x1, M18x1.5 to M14x1.5, and M24x1.5 to M16x1.5. Each fitting is a one-piece brass part. The maximum pressure is 16 bar (232 psi) at 20 °C (68 °F). Brass is suitable for neutral and non-corrosive media.
