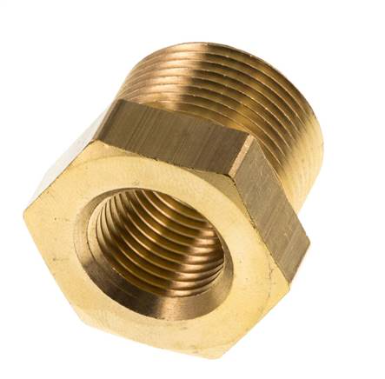

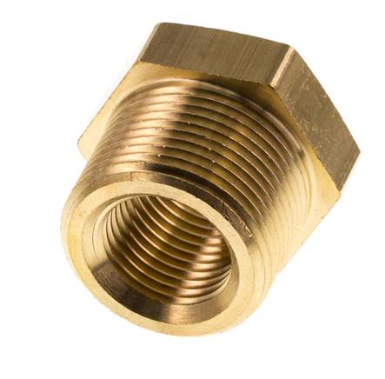

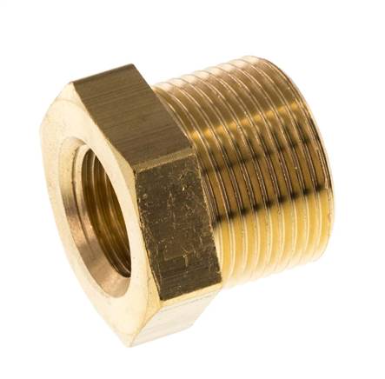

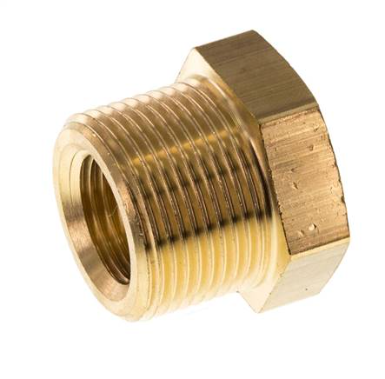

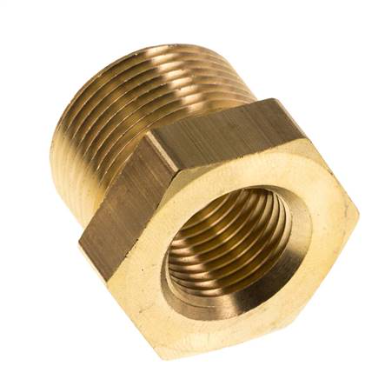

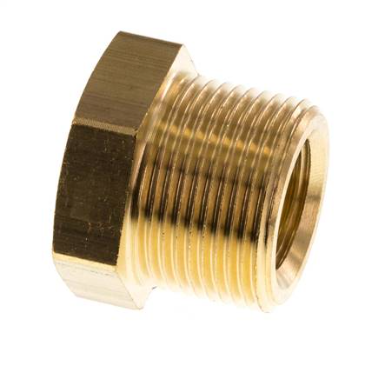

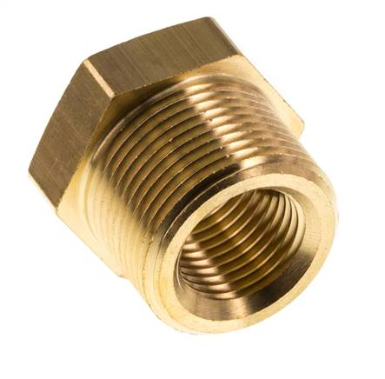

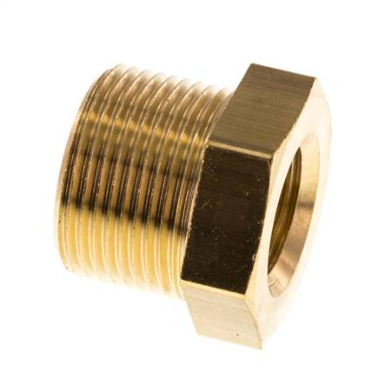

M24x1.5 Male x M16x1.5 Female Brass Reducing Nipple 16bar (232psi)
Brass reducing nipple with a male M24x1.5 thread and a female M16x1.5 thread, both metric fine threads. It connects an M16x1.5 fitting to a larger M24x1.5 port. Maximum pressure 16 bar (232 psi) at 20 °C (68 °F). One-piece straight body, 27 mm wrench width. For neutral and non-corrosive media.
- Regular price
- $11.58 USD
We sell only to registered businesses
Description
Male M24x1.5 and female M16x1.5 metric fine threads. Use this brass reducing nipple to connect an M16x1.5 fitting or line to a larger M24x1.5 port. The maximum pressure is 16 bar (232 psi) at 20 °C (68 °F).
Measure the diameter and pitch of the mating threads before ordering. These fine threads do not fit standard M24 coarse threads (3 mm pitch) or M16 coarse threads (2 mm pitch). The metric threads are parallel and do not seal on the thread flanks, so the connection needs a separate seal that is suitable for the medium.
The one-piece straight body has a 27 mm wrench width and a head length of 8 mm. Brass is suitable for neutral and non-corrosive media. For other media, check that brass is compatible with the medium before installation.
Pros:
- Male M24x1.5 and female M16x1.5 metric fine threads
- Max pressure 16 bar (232 psi) at 20 °C (68 °F)
- One-piece brass body, 27 mm wrench width
Cons:
- Brass body, for neutral and non-corrosive media only
- Parallel threads do not seal; a separate seal is needed
Series:
The S-6HBJ series are straight brass reducing nipples with a male metric fine thread and a smaller female metric fine thread. The range includes M14x1.5 to M10x1, M18x1.5 to M14x1.5, and M24x1.5 to M16x1.5. Each fitting is a one-piece brass part. The maximum pressure is 16 bar (232 psi) at 20 °C (68 °F). Brass is suitable for neutral and non-corrosive media.
